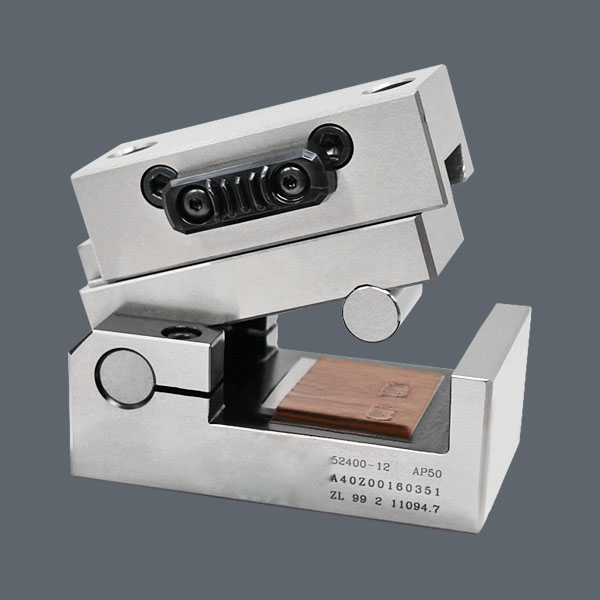

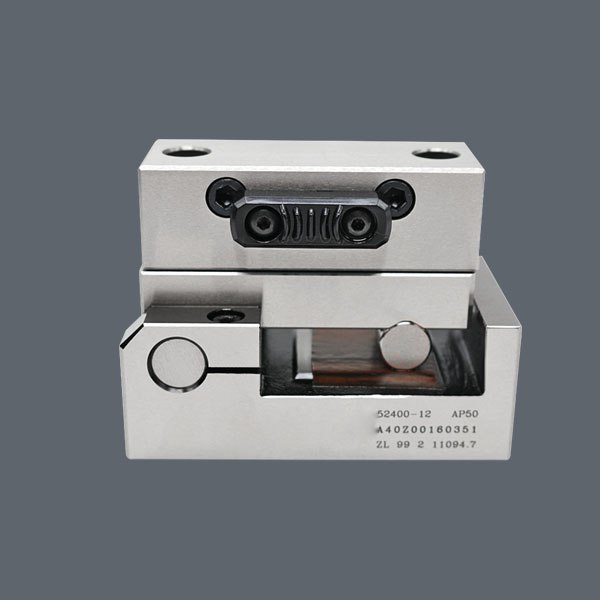

JINGZHAN AP50 Angle Sine Wheel Dresser

The JINGZHAN AP50 Angle Sine Wheel Dresser is a professional-grade tool engineered to deliver superior accuracy in wheel dressing operations. By integrating a high-precision sine bar mechanism, this dresser enables users to set and maintain angles with unmatched consistency, ensuring optimal surface finish and dimensional accuracy on workpieces.

Manufactured from premium alloy steel, the AP50 undergoes full-body hardening (HRC58–62) and precision grinding to guarantee long-lasting durability and stability. Its compact yet rigid design allows it to be easily mounted on various machine tools without sacrificing performance.

The AP50 is ideal for mold manufacturing, precision parts production, and tool re-sharpening, offering angle accuracy within ±0.002mm and repeatability that meets the demands of high-end machining environments. Whether used in vertical or horizontal configuration, this dresser provides quick setup, easy operation, and stable performance.

Key Features

• Dual-Use Design – Supports both vertical and horizontal applications for versatile operation.

• Exceptional Accuracy – Angle error ≤ ±0.002mm for consistent precision in every use.

• Premium Build Quality – Made from high-grade alloy steel, fully hardened, and precision ground for superior wear resistance.

• Efficient Operation – Quick locking and release mechanism reduces setup time.

• Compact Structure – Space-saving design compatible with multiple machine tool setups.

• Smooth Adjustment – High-precision sine bar allows fine angle settings from 0° to 60°.

Technical Specifications

• Model: AP50

• Maximum Wheel Diameter: ≤ 50mm

• Adjustable Angle Range: 0°–60°

• Angle Accuracy: ≤ ±0.002mm

• Overall Dimensions: 87 × 50(φ) × 73mm

• Weight: approx. 1.4kg

• Material: Premium alloy steel (HRC58–62)

Applications

• Mold making and maintenance

• Precision component manufacturing

• Tool and cutter grinding

• Surface grinding and contour dressing

• Fine finishing in high-accuracy machining

Package Contents

• AP50 Angle Sine Wheel Dresser × 1

• Protective storage case × 1

• User manual × 1

After-Sales Service

• 12-month quality guarantee

• 30-day unconditional return and exchange

• Professional technical support available

Shipping Policy

• Ships within 1–2 business days after payment confirmation

• Domestic delivery: 3–7 working days

• International delivery: 7–15 working days (shipping time may vary by destination)

• Tracking number provided for all shipments

• Free shipping for orders over $99
