BAP400R Face Milling Cutter Full Set (50-22-4T to 300-32-14T, Complete Specifications)

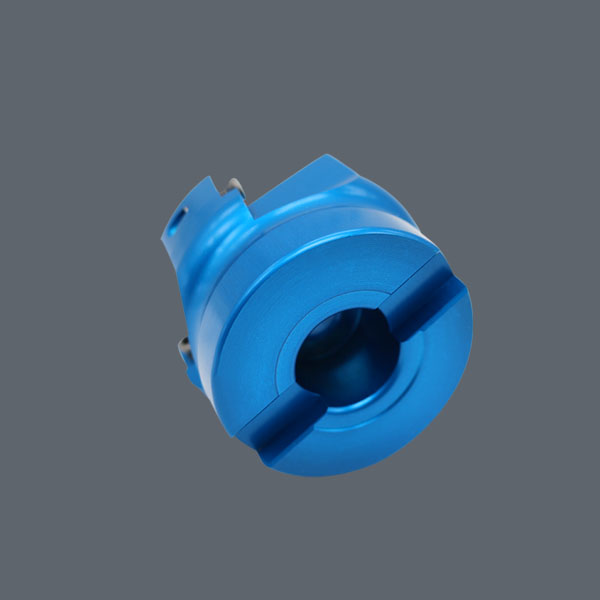

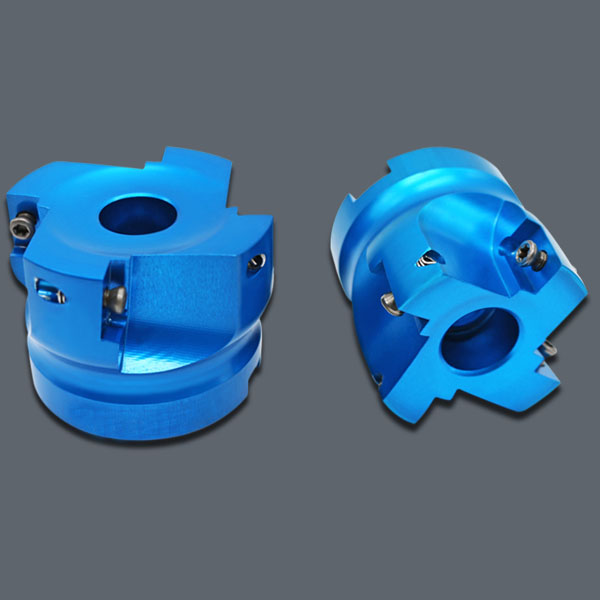

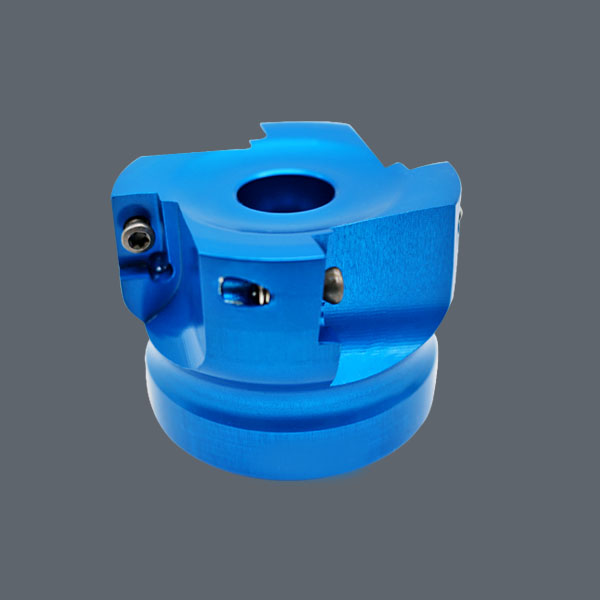

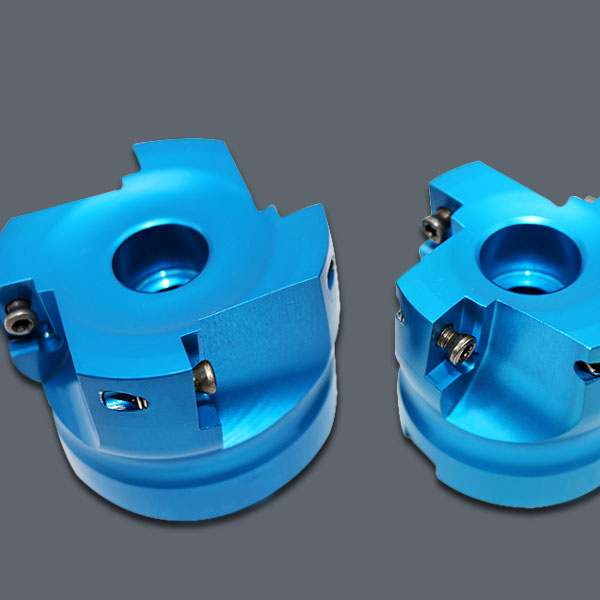

The BAP400R Series Face Milling Cutter is manufactured from premium alloy steel and heat-treated for superior hardness and wear resistance. Its surface is finished with precision sandblasting and anti-rust coating, ensuring extended tool life. The optimized structural design provides excellent rigidity, efficient chip evacuation, lower cutting resistance, and greater machining stability.

This cutter series covers diameters from 50mm to 300mm, with models including 50-22-4T, 63-22-5T, 80-27-6T, 100-27-7T, 125-32-8T, 160-32-10T, 200-32-12T, 250-32-12T, and 300-32-14T. It is suitable for CNC machining centers, gantry milling machines, and vertical milling machines.

The cutters are designed for standard APKT1604/1204 inserts, allowing simple installation, secure clamping, and high surface finish. They are especially suitable for mass production, continuous cutting, and multi-station operations, significantly enhancing productivity and stability.

Specifications

• Model: BAP400R Series

• Diameter range: 50mm – 300mm

• Bore size: 22 / 27 / 32 mm (depending on model)

• Number of teeth: 4T / 5T / 6T / 7T / 8T / 10T / 12T / 14T

• Material: High-strength alloy steel

• Surface treatment: Sandblasted + anti-rust coating

• Insert type: APKT1604 / APKT1204

• Compatible machines: CNC milling centers, gantry mills, vertical milling machines

• Applicable materials: Steel, cast iron, stainless steel, non-ferrous metals

Package Contents

• Full set of cutters (50–300mm, one of each model)

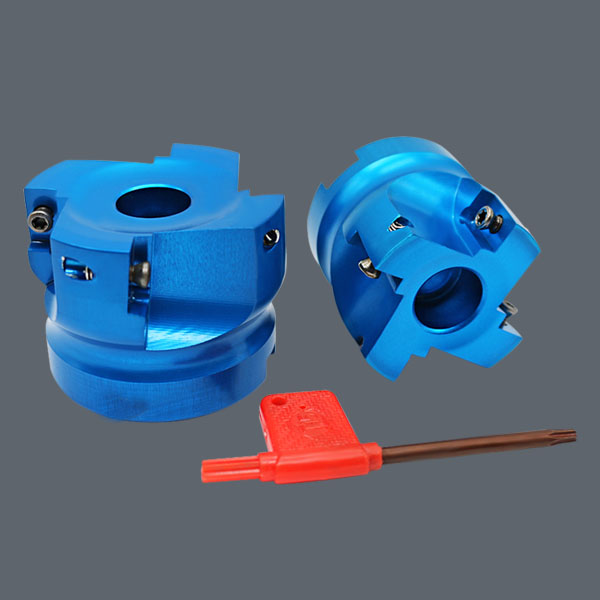

• Special wrench, spare clamps and screws

• Matching inserts (APKT1604 / 1204, depending on size)

• Product certificate & user manual

Shipping Information

• Dispatch: Within 3–5 business days after order confirmation

• Packaging: Individual anti-shock protection + outer carton

• Shipping: DHL / FedEx / UPS / EMS / air freight / sea freight

• Cost: Calculated by weight and destination, combined shipping available

After-Sales Policy

• 7-day return/exchange for non-human quality issues

• 6-month warranty on cutter bodies and accessories (inserts excluded as consumables)

• Technical consultation and installation guidance provided
